Introduction to base station wiring

The base station is a common core component in modern smart devices. It is responsible for centralized control and management of the operation of multiple subsystems or devices. It exists as the brain in these systems, coordinating the work of devices with different functions to ensure their interconnection and efficient operation.

Product introduction, feature introduction

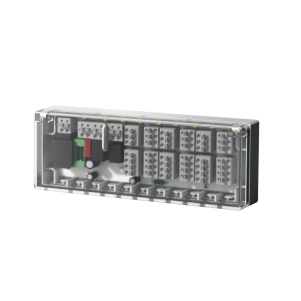

This product has made a big change in appearance and size, from the original 90*324*52 mm 8-zone connection to 35*184*67* mm 6-zone connection. The 6-zone is more in line with the needs of floor heating in small-area families. Secondly, this product is not only installed on the wall with screws, but also adds a back magnetic suction installation method, which is also more convenient for installation and disassembly and maintenance.

Wiring diagram

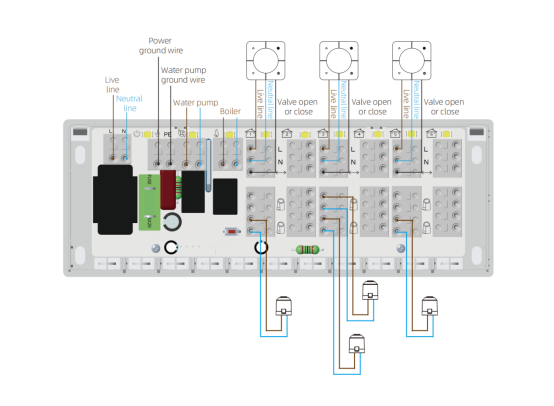

The figure shows that only 3 thermostats and 4 actuators are connected. It can carry up to 6 thermostats and 12 or even 24 actuators. Under normal circumstances, only 12 actuators can be installed, but you can connect two actuators in parallel in the same actuator connection hole, then you can connect 24 actuators.
