930031NT PRESSURE DIFFERENTIAL BYPASS VALVE
Product Specification：
Pressure difference adjustment range： 0.1bar~1.0 bar
Maximum withstand voltage：16 bar
Working temperature ： 0-110℃

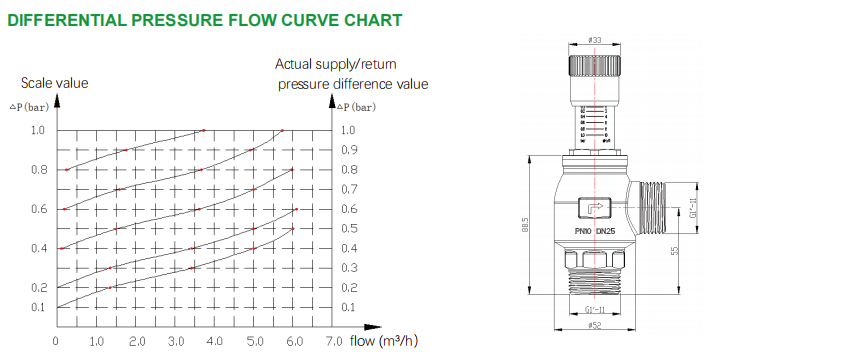

Valve Kv value ：See the curve chart
Valve body material： SUS304
Connection specifications： DN25(G1”)
Technical Parameter User manual Certification Customize Solution
PRODUCT DESCRIPTION AND ADVANTAGES
A pressure differential bypass valve is used to balance the pressure difference between supplyand return water in a two-way AC system. It can automatically adjust the opening according tothe terminal heat load. It can also ensure the passage of a certain amount of water in the AC unitwhen the terminal load is subtle or zero. The valve is superior to other balance valves in that itdoes not need other power, completely relying on the pressure difference.
If you are not sure what valve do you want, or the parameters of the valve, our team will assist you according to your application and idea, to achieve what valve do you need.
