Fancoil Valves
Fan-coil control valves used for controlling the flow of hot or coldwater in heatingand air conditioning systems.They are operated by electric actuators with max.stroke of 2.5 mm.such as 920066PL thermal actuator series.As standard, thevalves are available in the configuration withmale thread in the following versions:

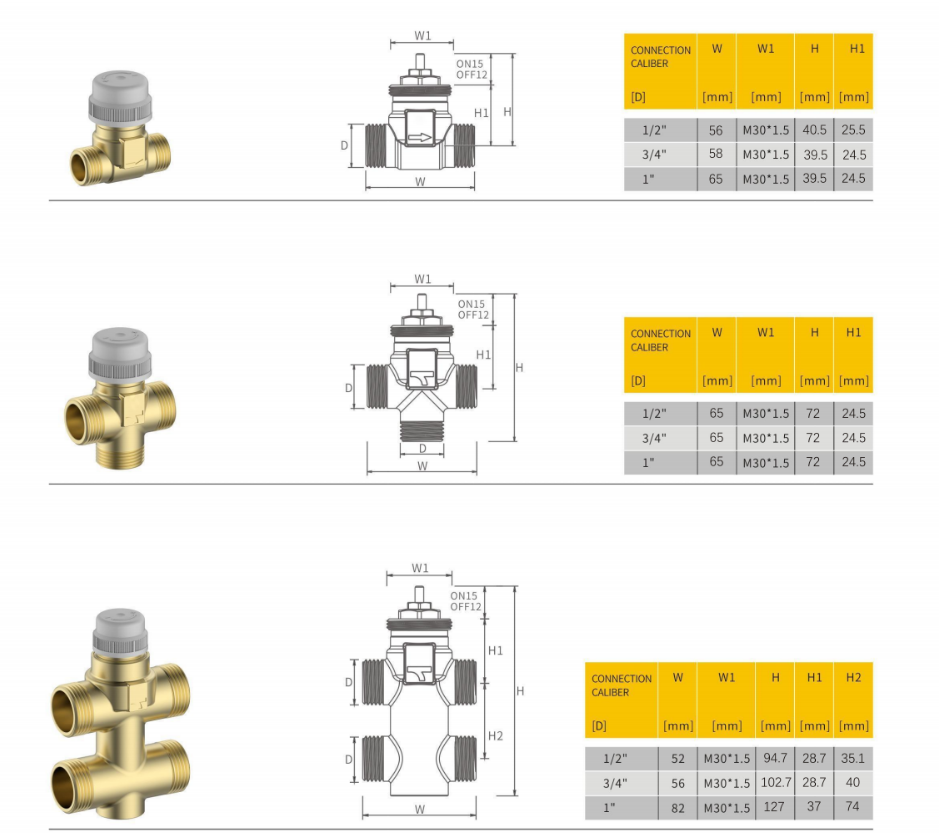

.2-way series
.3-way series
.3-way with 4 ports series with built-in by-pass.
Technical Parameter User manual Certification Customize Solution
Valves technical parameter:
Max pressure, models w. constant Kv: 16 bar
Max pressure, models w. variable Kv: 10 bar
Min. fluid temperature: 4°C
Max. fluid temperature:110°C
Liquids which can be used: Water (with glycol≤50%)
Plug stroke:2.5 mm
By-pass leakage: <0,02% Kvs
Actuator connection: Threaded ring nut M30x 1.5
If you are not sure what valve do you want, or the parameters of the valve, our team will assist you according to your application and idea, to achieve what valve do you need.
