Base station 230V 10 zones for heating
Description

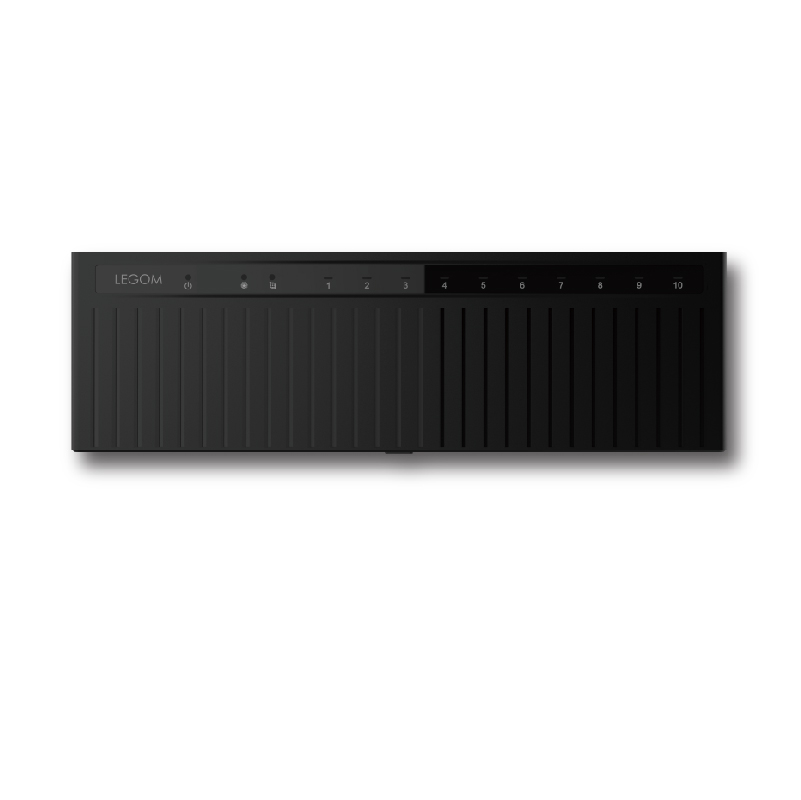

BS-N1 is the central connection unit of a room-by-room temperature control for the surface temperature adjustment of heating systems,it can be adapted either on a DIN rail or directly on a wall.
BS-N1 allows to connect up to 10 room thermostats with its actuators of 230 V AC,and it also controls the boiler or heat pump through an voltage free output.
Connects up to 10 room thermostats
Forced start-pump
Control over the boiler and circulating pump
120 delay start for heat pump and water pump
Shut-down delay
Easy wiring and installation
DIN rail installation
LED working indicator
Technical Parameter User manual Certification Customize Solution
Supply:AC230V, 50/60Hz Material:ABS+PC flame retardant
Max Load:3A Total/Each zone max. 2A Fuse:5 Amp, 20mm
Control Direction:normally close Boiler/Heat pump Output:Dry contact
Pump Output:AC230V Storage Temp. :20ºC – 60ºC
Work Temp. :0 ºC – 40ºC Work Humidity :20% - 90 %
Approvals :CE Protection Class: Class II + IP20
Dimension(L*W*H)：332mm*102mm*51mm Weight：550g
Max number of thermostat connections:10pcs
Max number of actuator connections to 1 zone：5pcs
If you are not sure what valve do you want,or the parameters of base station,our team will assist you according to your application and idea,to achieve what product do you need.
