920067PL

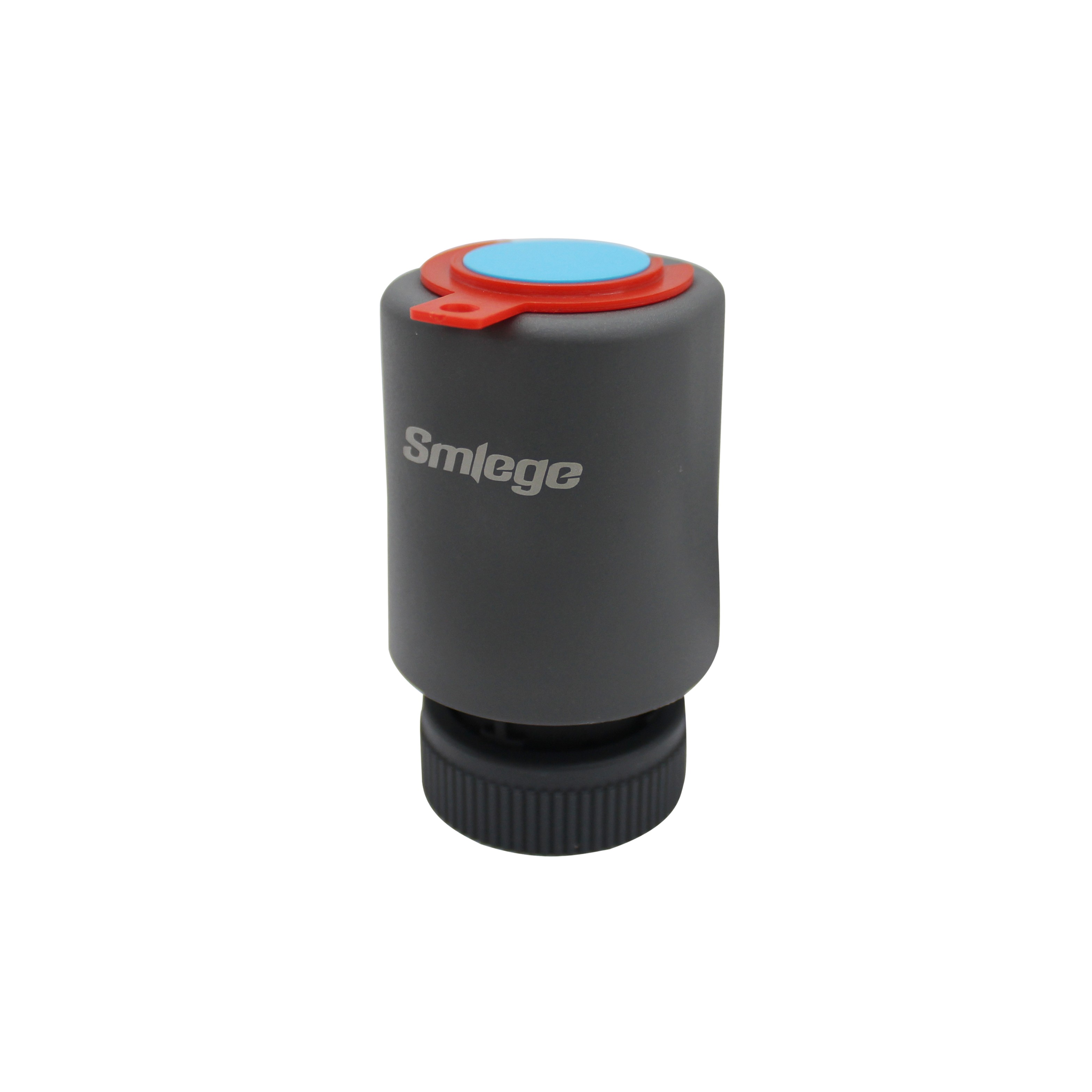

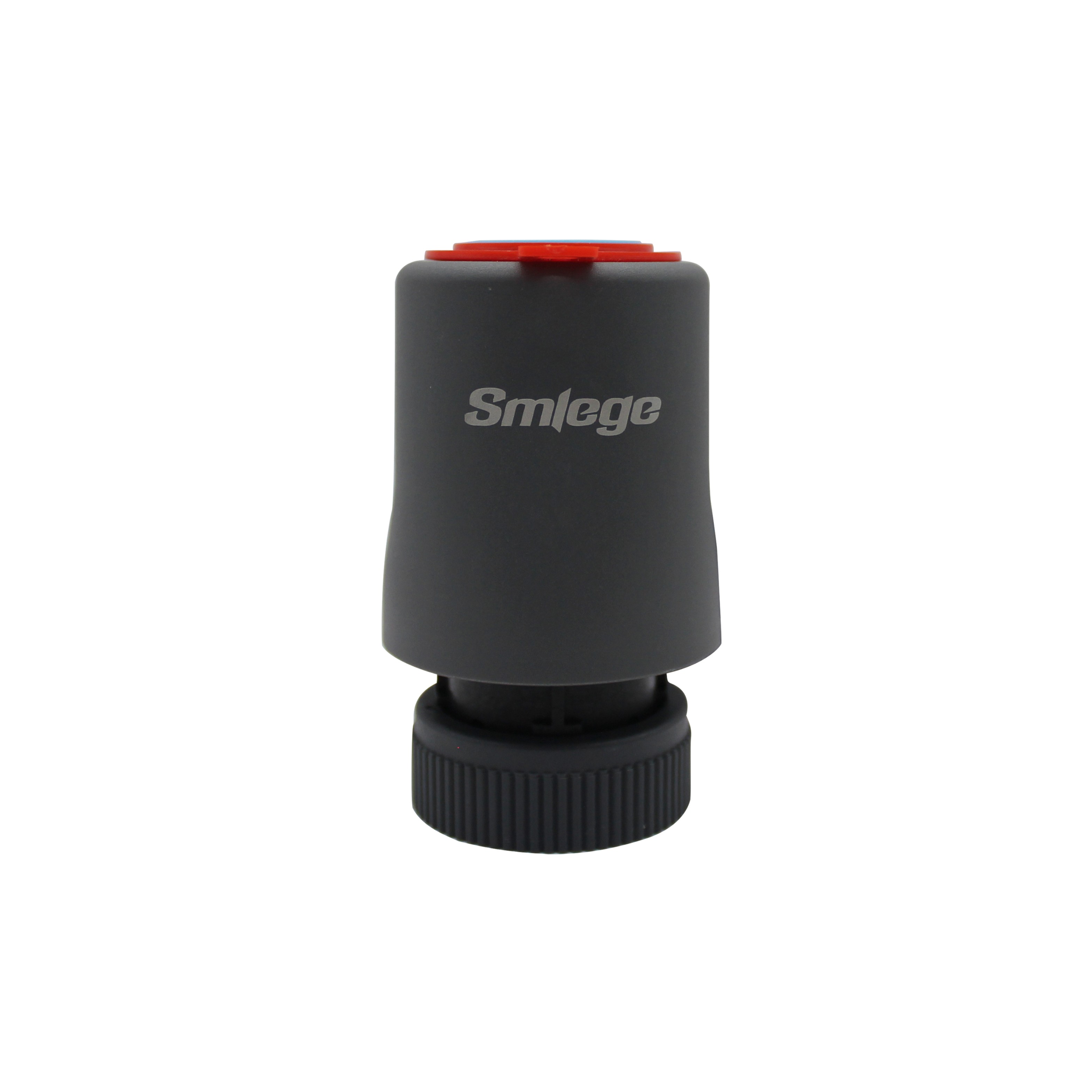

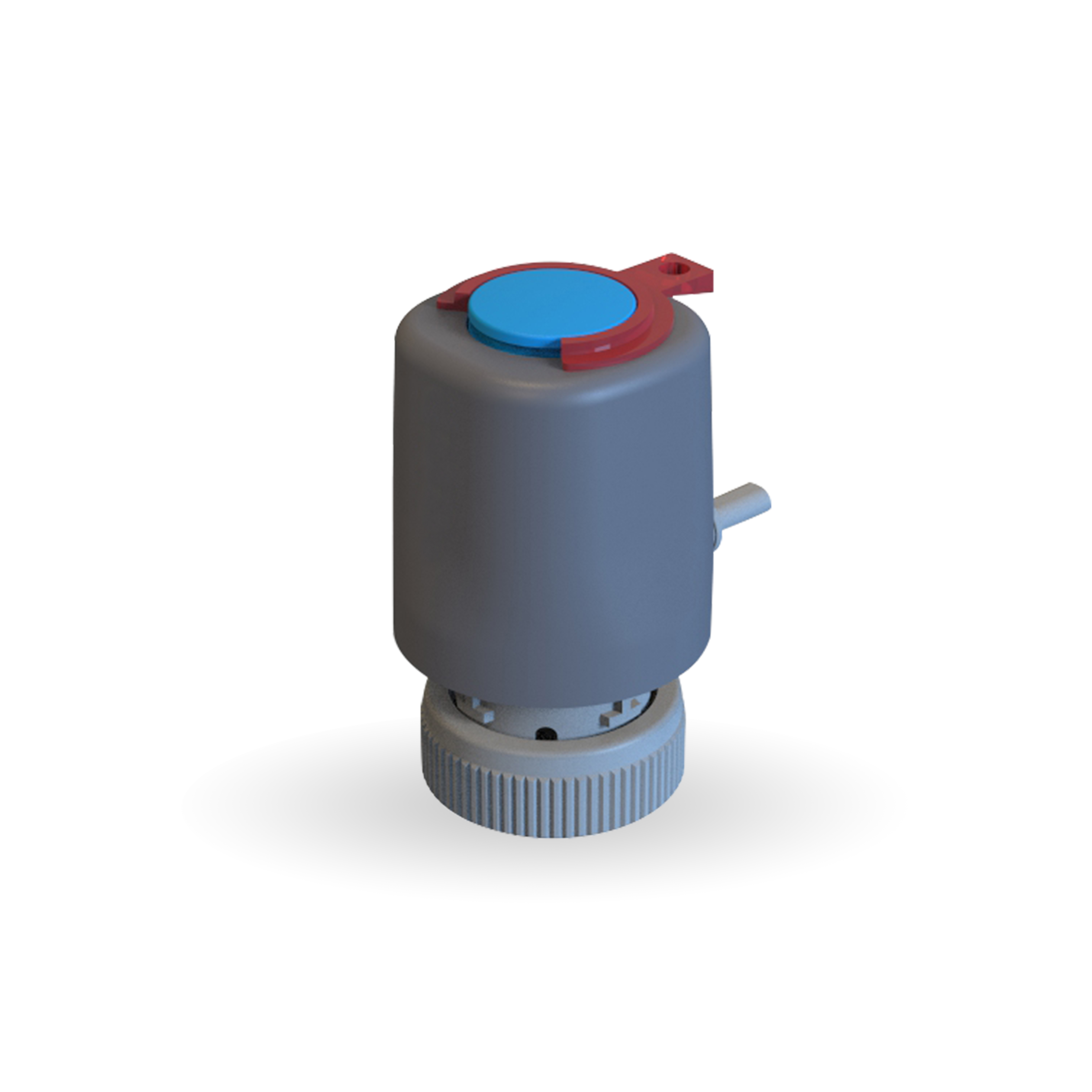

Thermal actuator with First-open


The actuators are mainly used in floor heating systems to control closing and opening of the valves. It is specifically applied to electric drive part of the branch manifold valve, small valve and dynamic balance valve.


Feature:

Compact size, small dimensions

Fast installation and disassembly

Noiseless

Low power consumption

Full view stroke indication






Temperature control in intelligent HVAC systems on the market not aimed at energy saving will end nowhere- starting with the use of room thermostats and terminal thermal actuators.

Thermal actuator is widely used in floor heating system and ceiling radiant heating and cooling systems, air conditioning systems, radiator hydronic heating system, and other systems that require temperature control or fluid on-off control, automatically switch the controlled loops by receiving signals from room thermostats or other electrical switches. Thus, electric actuators play a vital role in heating and cooling. Usually used in combination with a ufh manifold.




SMLG offers two complete control heating systems that you can choose from, depending on your preferences and needs.

  • One refers to a wireless control automation system, where the wall thermostat communicates with the control terminal block via radio waves.

  • The other is a traditional wired automation system that requires the installation of wires connecting its individual components.



Room Thermostat

  • A broad range of devices for different applications

  • With wifi and non-wifi two styles



Base Station

  • Wired Base station with heat pump and boiler control

  • With 8 zones in 24V/230V


underfloor heating valve actuators

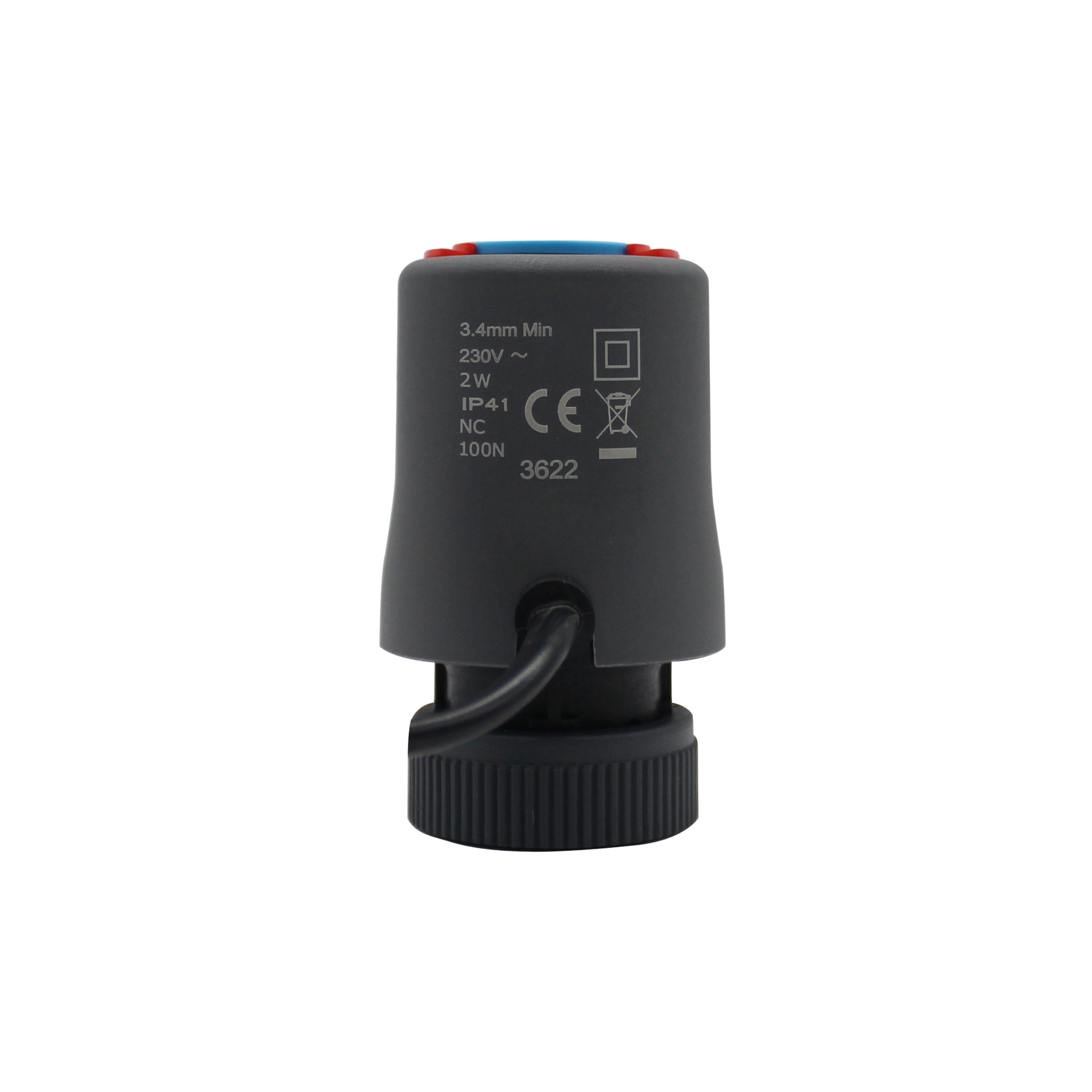

 230V/24V/12V 2w Electric Thermal Actuator Floor Heating Valve For Underfloor Heating

Voltage: 230V/220V/210V/24V/12V Thermal Actuator

Control direction: Normally Closed (NC)

Power consumption: 2W

Working temperature: -5℃-60℃

Force: 100N

Stroke: ≥3.4mm

Protection Grade: IP41

Standard: EN 60730

Adapter: M30x1.5mm

Closing and opening time: 3-5mins

Housing material: PA66+30%GF





User manual







Certification






Customize Solution


If you want to develop new thermal actuator, our team will assist you to achieve your idea according to these details as follow:

-Supply the shape design.

-Supply the spring force.

-Supply the voltage.

-Supply the dimension of full open and close for valve.




SMLG will provide OEM&ODM partners with a wide rangeof services to support your business, including logocustomization, product development and designIf you have any questions, welcome to contact us.
