910075NT Horizontal Thermostatic Mixing Valve
| Model | Temperature Range | KVS Value | Connection |
|---|---|---|---|
| 910075NT-1 | 20–43°C | 2.5 m³/h | G1″ external thread |
| 910075NT-2 | 20–55°C | 2.5 m³/h | G1″ external thread |
| 910075NT-3 | 35–60°C | 2.5 m³/h | G1″ external thread |
| 910075NT-4 | 30–70°C | 2.5 m³/h | G1″ external thread |
Material of the valve body:brass
Temperature control accuracy:+3°C
Factory temperature setting:20°C/35°C
Maximum static pressure10bar
Mixing water temperature range: 20°C-43°C/35°C-60°C
Hot water temperature:55°C -75°C
Cold water temperature:5°C -15°C
Flow pressure (high pressure):1-5bar
Flow pressure (low pressure):0.2-1bar
Kvs:2.5 m3/h(MAX)
Technical Parameter User manual Certification Customize Solution

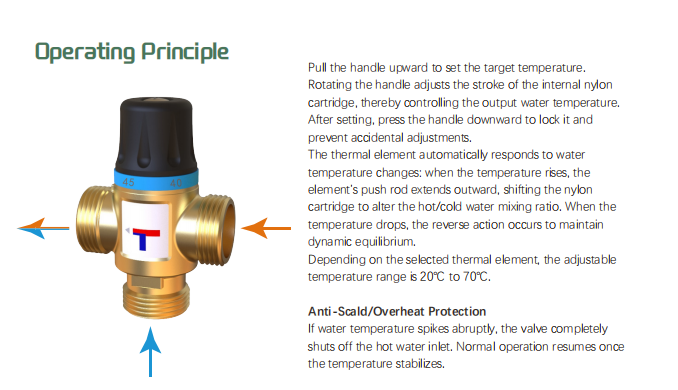

Horizontal thermostatic water mixing valve uses an internal thermal sensor to automatically adjust the ratio of hot and cold water inflow, thereby achieving the purpose of constant temperature water outflow. It is widely used in domestic hot water systems, floor heating systems, etc. Through real-time temperature control, it ensures water comfort and safety, and prevents users, floor heating pipes, floors, etc. from being scalded or damaged due to high temperatures.
If you are not sure what valve do you want, or the parameters of the valve, our team will assist you according to your application and idea, to achieve what valve do you need.
