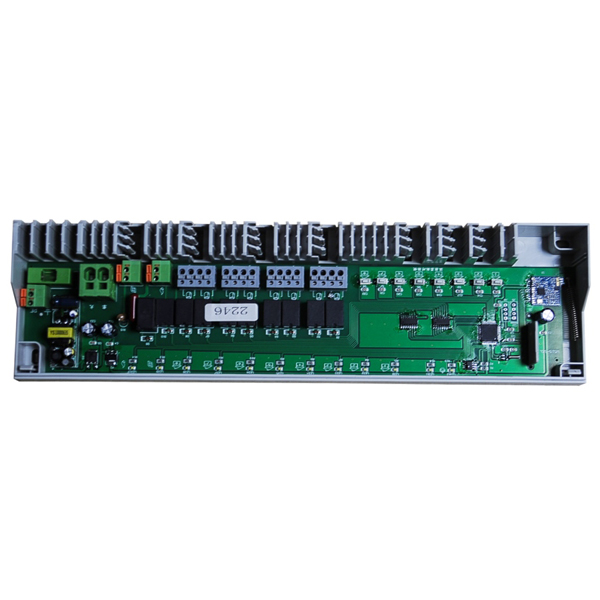

Multi-channel Wireless Base Station 8 zones

This base station is applied in water heating systems to provide a complete control solution for separate room temperature control. It includes 8 independent controlling areas, each area can be installed with a corresponding thermostat to realize independent temperature control. It links with wall-hung boiler and water pump. Wireless communication technology is adopted to simplify installation process.




The heating control system includes the manifold, room thermostats, heating thermal actuators, base station and other components.

Base station is the central connection unit of a room-by-room temperature control for the surface temperature adjustment of heating systems or underfloor heating system.


Room thermostat with wifi.

  • A broad range of devices for different applications.



The figure on the right shows a wireless control automation system where the room thermostat communicates with the radio waves of the control terminal board.



There are two types of thermal actuators suitable for wireless base station controller:

  • One with manual opening & position indicator (as shown on the right)

  • Another one with the First-Open function


Working Voltage: 230V±10%

Material: ABS

Control Direction: Normally Closed (NC)

Control Area: 8 zones

Max Control Thermostat Number: 8pcs

Max Control Actuator Number: 16pcs

Fuse: 5-10A

Protection: IP20

Standard: E 60730-2




User manual







Certification






Customize Solution


If you want to develop new thermal actuator, our team will assist you to achieve your idea according to these details as follow:

-Supply the shape design.

-Supply the spring force.

-Supply the voltage.

-Supply the dimension of full open and close for valve.




SMLG will provide OEM&ODM partners with a wide rangeof services to support your business, including logocustomization, product development and designIf you have any questions, welcome to contact us.
