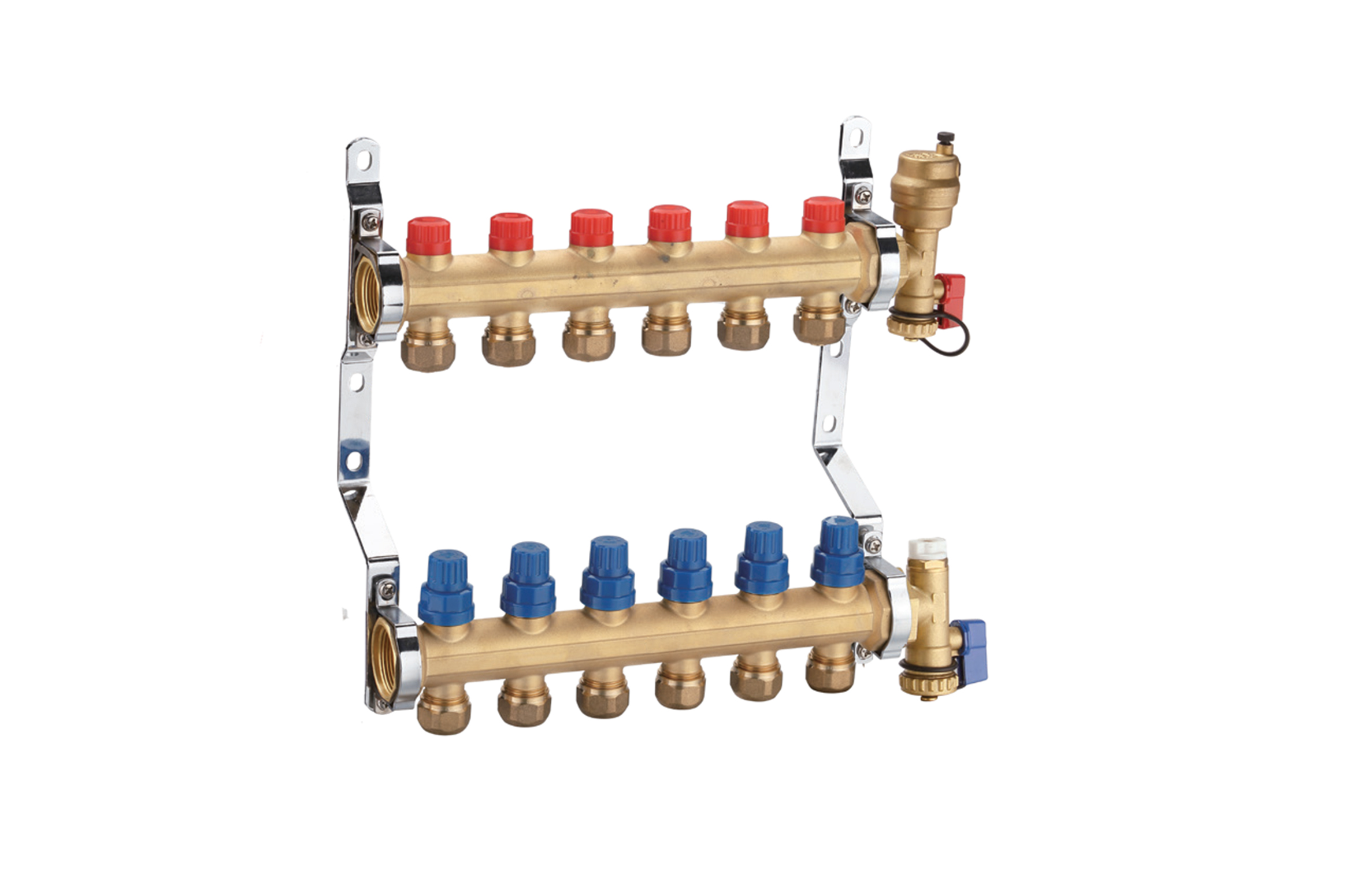

JFDM9 Brass Manifold

1" pre-assembled distribution manifold, consisting of: Control valves with handle, set up to fit thermo-electric heads. With flow regulating valves. PEX fittings or multilayer fittings inlet and outlet.

Equipped with 2 automatic air vent valves and 2 drain valves(with blue/red handles)


Technical Parameter  User manual  Certification  Customize Solution

Manifold Body: Brass

Medium: Water with Corrosion Inhibitors Present

Maximum Working Pressure: 10 bar

Apply Water Temperature: 0-82°C (short term at Max. 105°C)

Connection Spec.: 1F×3/4M, 1.1/4F×3/4M

Distance Between Branches: 50mm

Distance Between Manifolds: 215mm

Fittings: 16×2, 20×2

User manual






Customize Solution

 If you want to develop new thermal actuator, our team will assist you to achieve your idea according to these details as follow:

-Supply the shape design.

-Supply the spring force.

-Supply the voltage.

-Supply the dimension of full open and close for valve.

SMLG will provide OEM&ODM partners with a wide rangeof services to support your business, including logocustomization, product development and designIf you have any questions, welcome to contact us.
