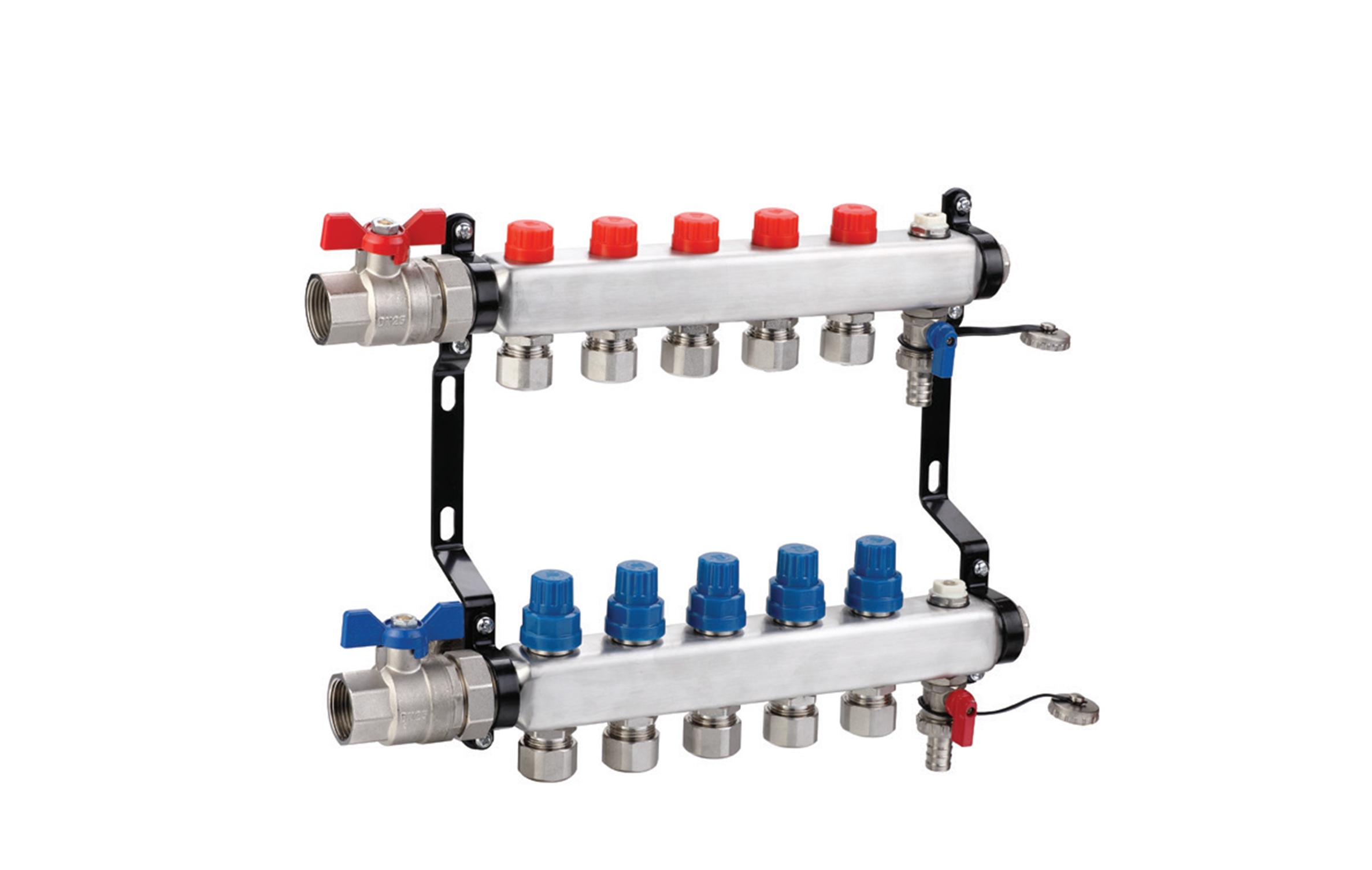

JFDM10 Stainless Steel Manifold

1" pre-assembled distribution manifold nickel-plated, consisting of: Control valves with handle, set up to fit thermo-electric heads. With flow meters or lockshields. PEX fittings or multilayer fittings inlet and outlet. 2 ball valves with blue/red handles.

Equipped with 2 air vent valves and 2 drain valves(with blue/red handles)


Technical Parameter  User manual  Certification  Customize Solution

Manifold Body: SS304

Medium: Water with Corrosion Inhibitors Present

Maximum Working Pressure: 10 bar (Flow Meter 6bar)

Apply Water Temperature: 0-82°C (Short Term at Max. 105°C)

Flow Meter Scale Range: 0.5-5L/min

Connection Spec.: 1F×3/4M

Distance Between Branches: 50mm

Distance Between Manifolds: 210mm

Fittings: 16×2, 20×2

User manual






Customize Solution

If you want to develop new thermal actuator, our team will assist you to achieve your idea according to these details as follow:

-Supply the shape design.

-Supply the spring force.

-Supply the voltage.

-Supply the dimension of full open and close for valve.

SMLG will provide OEM&ODM partners with a wide rangeof services to support your business, including logocustomization, product development and designIf you have any questions, welcome to contact us.
